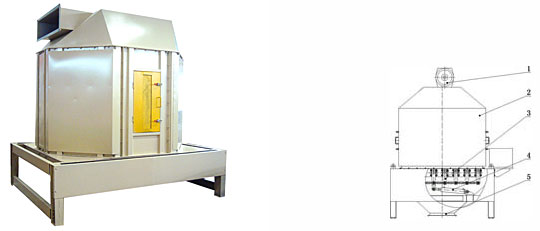

Name: SKLNF Series Tipping Cooler Model: SKLNF Series
Application :
SKLNF Series Tipping Cooler is mainly used to cool various granular materials and extruding feeds. It is suitably used to produce aquafeeds, shrimp feeds and high-grade poultry feeds.
Performance Features :
1. The tipping discharging mechanism is controlled by flexible hydraulic drive system, with adjustable discharging speed;
2. Equipped with material scattering device and the materials are distributed uniformly;
3. Compact structure and beautiful appearance;
4. Stable and reliable work, easy operation and maintenance.
Technical characteristics :
| Models Parameters | SKLN19×19F | SKLN24×21F | SKLN24×24F |
| Volume (m3) | 4.0 | 7.0 | 8.5 |
| Capacity (t/h) | 3~6 | 6~12 | 10~15 |
| Power (kw) | 1.5 | 2.2 | 2.2 |
| Rated working pressure of hydraulic system(MPa) | 14 | 14 | 14 |
| Size(L×W×H)mm | 2385×2500×3431 | 2795×2680×3826 | 2795×2980×3826 |
